IDloop® CFS flats

Plug-and-play contactless fingerprint scanner

4640,− €

VAT included

Using structured blue light, the portable device captures more than 5 million 3D-points per cloud and 13-point clouds per second, offering micron-scale resolution.

Made to order

Estimated delivery time: approximately 6 weeks

Speak to our sales representative for quantities of 5 or above.

Request for a loan unit to test out if CFS flats is right for your organization.

Free for the first month. 500,- € for subsequent months after.

Product Description

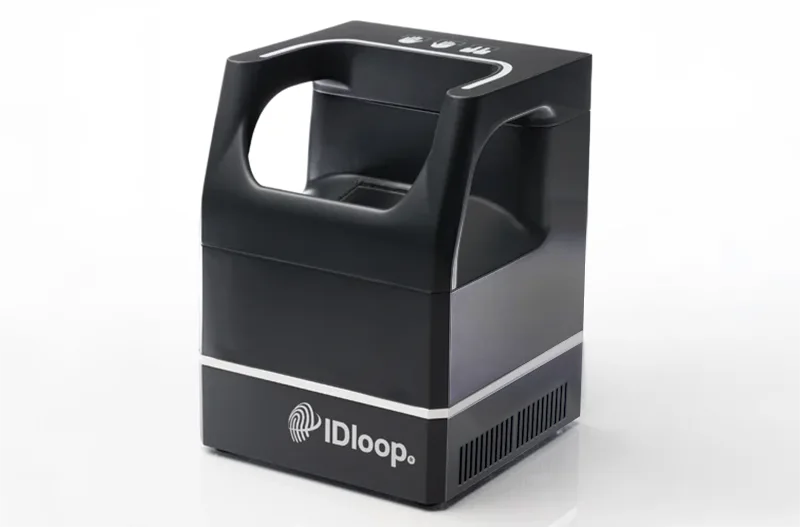

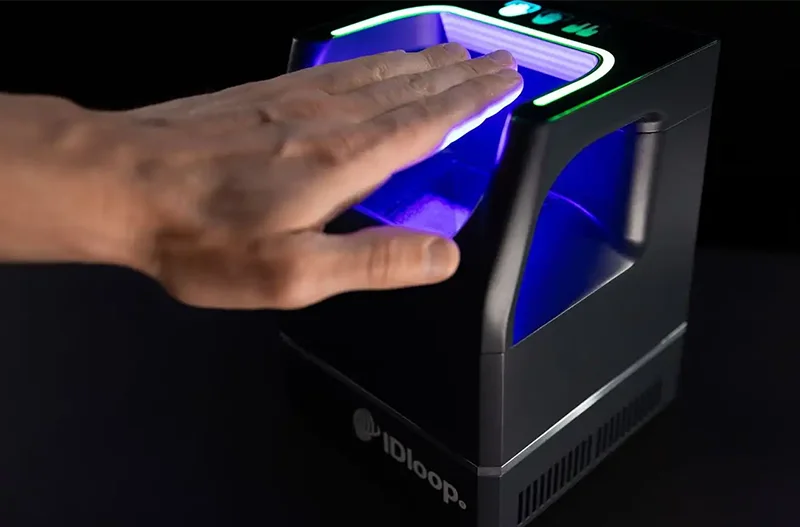

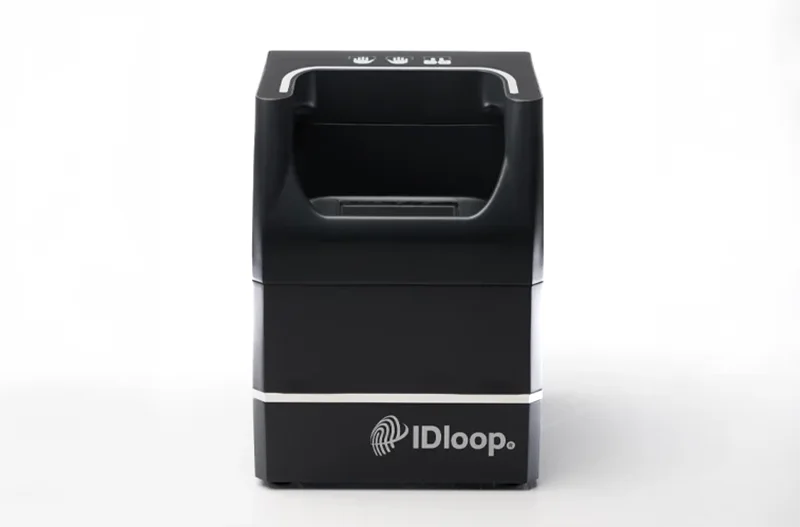

CFS flats, developed by IDloop, is a contactless fingerprint scanner that employs full 3D imaging techniques to capture fingerprints. The CFS flats scanner first projects structured light onto a surface. As the surface is not completely flat, a camera unit detects the distorted linear pattern. Then a computing unit reconstructs a highly detailed 3D point cloud of the microscopic peaks and valleys of the finger.

Size: W x H x D

Features:

  • Touchless
  • IP54
  • 3D Image Capture
  • Compatible with AFIS databases
  • USB Type C
  • LED Indicator
  • Flat Fingerprints
  • 500 PPI
Technical Specifications
Hand-presence-detection, auto-capture

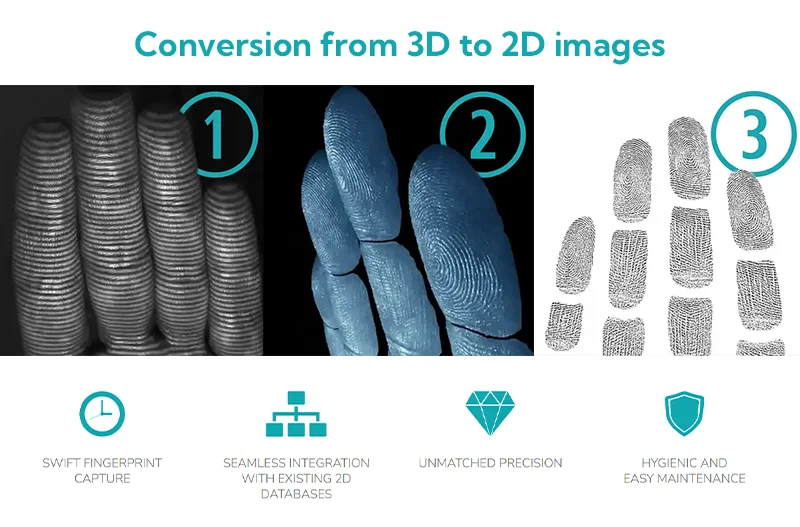

Microscopic 3D capture / image conversion of 3D data into ‘contact-based like’ 2D grayscale images
81.3 x 76.2 mm
User guidance via audio, LED feedback, pictograms
Flat fingerprints including thumbs (e.g. 4/4/2 workflow)
500 ppi (final image)
1,600 x 1,500 pixels (FAP60)
256 grayscale dynamic range (8bit integer)
PNG, JPEG2000, BMP, WSQ
Python & C++
Scan speed < 100 ms / Live preview > 10 frames per second /
Output final image ~ 3s
IP54
Temperature: -10°C to 55°C (14°F to 131 °F) / Humidity: 10% - 80% (non-condensing)
Ambient light: 100,000 lux /
Robust capture of all skin types (dry, wet, dark, bright, wrinkled, small features)
-40°C to 80°C/-40°F to 176°F
152 x 152 x 202 mm
USB 3.0
12 V DC, 5A, External power supply
Windows 10/11 (64 Bit)
FAQ

What are the possible applications?
CFS flats contactless fingerprint scanner is suitable for a variety of applications, including but not limited to:

  • Border Control
  • Portable Enrollment Device
  • Visa Application
  • National ID Card
  • Banking & ATM
  • Post-mortem Identification



Why does the delivery take so long?
As the device is produced on demand, delivery times may vary. Please allow up to 6 weeks from the date the Terms & Conditions are signed.



How long can I loan CFS flats?
You may loan the device for as long as you need. Please note that after the first month (which is free), each additional month costs €500.



Is there a warranty on the device?
Yes / No



How do I return the device after the loan period?
At the end of your loan period, simply contact our support team to arrange a return. We will provide you with return instructions.



If you have any more questions, please contact our sales representative.
