Where Enhanced Security and
Groundbreaking 3D Technology meet.

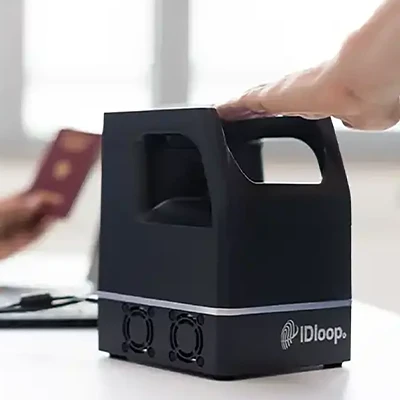

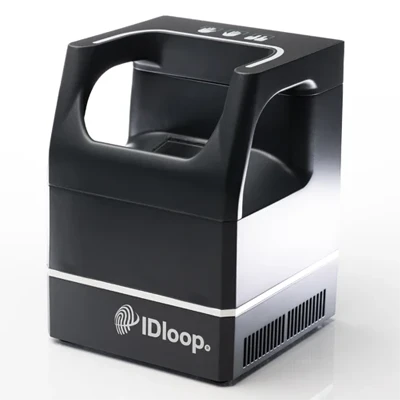

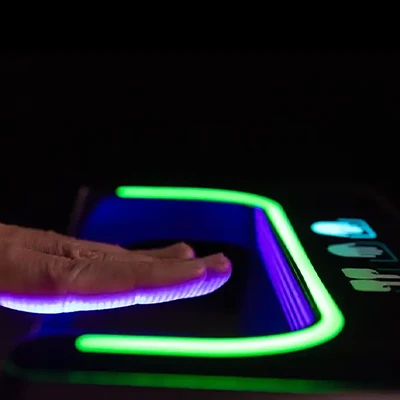

CFS flats the world’s first highly secure contactless fingerprint scanner

Using structured blue light, the portable device captures more than 5 million 3D-points per cloud and 13-point clouds per second, offering micron-scale resolution.

dolorrum facepta cuptius estiae sitate porernam aut lanimi, occuptae am fugit, quam, conserovid maiore et laborum illiti dolorro ero iducient, consedi pientibus doluptam, sitis abo. Itatur, consequiae. Ut aut reius utatusanda comnia sit, simus dolor autendi gnisquatatem qui volupti onectota nis dolores eiunt veles

eles imaiore con con cor as everia voluptatis qui venieniet quo que



Application

Bo. Ducipsum escidebit quamenimus voluptiae sapellabore et ate liate dest ommolora sim id ut

Border Control

Portable Enrollment Device

Visa Application

National ID Card

Banking & ATM

Post-mortem Identification

Features

Plug-and-play contactless fingerprint scanner

Touchless

IP54

3D Image Capture

Compatible with AFIS databases

USB Type C

LED Indicator

Flat Fingerprints

500 PPI

Specifications

Hand-presence-detection, auto-capture
Microscopic 3D capture / image conversion of 3D data into ‘contact-based like’ 2D grayscale images
81.3 x 76.2 mm
User guidance via audio, LED feedback, pictograms
Flat fingerprints including thumbs (e.g. 4/4/2 workflow)
500 ppi (final image)
1,600 x 1,500 pixels (FAP60)
256 grayscale dynamic range (8bit integer)
PNG, JPEG2000, BMP, WSQ
Python & C++
Scan speed < 100 ms / Live preview > 10 frames per second /
Output final image ~ 3s
IP54
Temperature: -10°C to 55°C (14°F to 131 °F) / Humidity: 10% - 80% (non-condensing)
Ambient light: 100,000 lux /
Robust capture of all skin types (dry, wet, dark, bright, wrinkled, small features)
-40°C to 80°C/-40°F to 176°F
152 x 152 x 202 mm
USB 3.0
12 V DC, 7.5 A, External power supply
Windows 10/11 (64 Bit)
